AOP Concept

• Join Point
  • A point in execution of a program such as a method call or field assignment
• Pointcut
  • An expression that selects on or more Join Points
• Advice
  • Code to be executed at a Join Point that has been selected by a Pointcut
• Aspect
  • A module that encapsulates pointcuts and advice

Defining pointcuts

• Spring AOP uses AspectJ’s pointcut expression language
• Spring AOP supports only method execution joinpoints
• Common pointcut designator
  • execution()
• Can be chained together to create composite
  • && (and), || (or), ! (not)
• Method pattern
  • [Modifiers] ReturnType [ClassType] MethodName ([Arguments]) [throws ExceptionType]

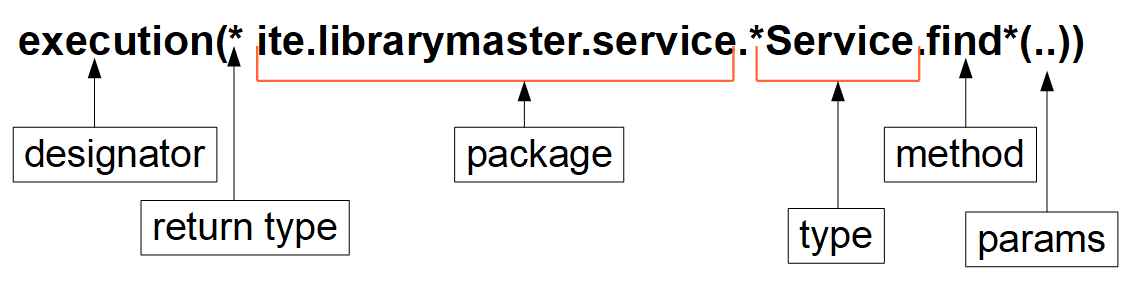

Pointcut expression:

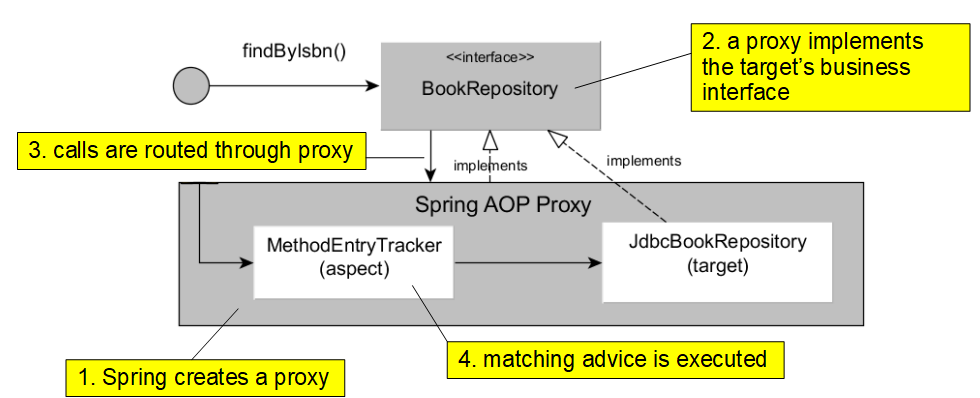

Spring AOP Proxies

• Spring AOP uses standard J2SE dynamic proxies for interfaces
• It can also use CGLIB proxies to proxy classes

Supported Advices

• Before Advice - @Before

  • Advice is executed before method invocation
  • If advice throws an exception, target will not be called

  @Aspect
  public class MethodExecutionTracker {
  // track all setter methods
      @Before("execution(void set*(..))")
      public void trackMethod() {
          // log message before method is executed
      }
  }


• After returning Advice - @AfterReturning

  • Advice is executed when a matched method execution returns normally

  @Aspect
  public class MethodExecutionTracker {
      // track all setter methods
      @AfterReturning("execution(void set*(..))")
      public void trackMethod() {
          // log message after method is executed
      }
  }


  @Aspect
  public class MethodExecutionTracker {
      // track all getter methods
      @AfterReturning(value="execution(* get*(..))", returning=”retValue”)
      public void trackMethod(Object retValue) {
          // log retValue after method is executed
      }
  }


• After throwing Advice - @AfterThrowing

  • Advice is executed when a matched method execution exits by throwing an exception

  @Aspect
  public class MethodExecutionTracker {
      // track all setter methods
      @AfterThrowing(value="execution(void set*(..))", throwing=”ex”)
      public void trackException(LibraryException ex) {
          // log message after exception is thrown
      }
  }


• After (finally) Advice - @After

  • Advice is executed when a matched method execution returns normally or it exits by throwing an exception

  @Aspect
  public class MethodExecutionTracker {
      // track all update methods
      @After("execution(void update*(..))")
      public void trackMethod(LibraryException ex) {
          // log message after method is executed, or exception is thrown
      }
  }


• Around Advice - @Around

  • Advice runs “around” a matched method execution
  • It can do something before and after method execution
  • You can skip the target execution

  @Aspect
  public class MethodExecutionTracker {
      // track all update methods
      @Around("execution(void update*(..))")
      public Object trackMethod(ProceedingJoinPoint pjp) throws Throwable {
          // log message before method is executed
          Object retVal = pjp.proceed();
          // log message after method is executed
          return retVal;
      }
  }


Named Pointcuts

• Try to break one complicated expression into several less complicates sub-expressions
• Allow pointcut expression reusability
• Consider externalizing expressions into dedicated class
  • When you have many pointcuts
  • When you have complicated expressions

public class SystemArchitecture {
    @Pointcut("execution(void set*(..))")
    public void setterMethod(){}
    @Pointcut("execution(* get*(..))")
    public void getterMethod(){}
}

@Aspect
public class MethodExecutionTracker {
    // track all setter methods
    @Before(“example.SystemArchitecture.setterMethod()”)
    public void trackMethod() {
    // log message
    }
}

Context Selecting

• Pointcuts may select useful JoinPoint context
  • The currently executed object
  • The target object
  • Method arguments
  • Annotations associated with the method, target, or argument
• Allows for simple POJO advice methods
  • Alternative to working with a JoinPoint object directly

Example: Let’s log detail message every time there is new Customer going to be added.

public interface CustomerService {
    void addCustomer(Customer c);
}

@Before(“execution(void *.service.CustomerService+.addCustomer(Customer))
                   && target(service) && args(cust)”)
public void logNewCustomer(CustomerService service, Customer cust){
    // use service and cust to log details
}

and with named pointcut:

// Usage of named pointcut with contectual arguments 'service' and 'cust'
@Before(“addCustomerMethod(service,cust)”)
public void logNewCustomer(CustomerService service, Customer cust){
    // use service and cust to log details
}

// Named Pointcut definition (method name = pointcut name)
@Pointcut(“execution(void *.service.CustomerService+.addCustomer(Customer))
                           && target(service) && args(cust)”)
public void addCustomerMethod(CustomerService service, Customer cust){}

Pointcut Expression with Annotation

• Selecting any method returning void and annotated with the @Transactional

  execution(
  @org.springframework.transaction.annotation.Transactional void *(..)
  )


• Select any method that returns a value annotated with the @Tracked

  execution( (@example.Tracked *) *(..) )


• Run security check before any @Secured service operation (annotation() designator)

  @Before(“execution(* service..*.*(..)) && target(object) && @annotation((secured)”)
  public void check(JoinPoint jp, Object object, Secured secured){
      checkPermission(jp,object,secured.allowedRoles());
  }


Limitations

• Can only advise public Join Points
• Can only apply aspects to Spring beans
• Limitations of weaving with proxies
  • Spring will add behavior using dynamic proxies if a JoinPoint is declared on an interface
  • If JoinPoint is in class without an interface, Spring will use CGLIB for weaving
  • When using proxies, if method a() calls method b() on the same class/interface. Advice will never be executed for method b()
